Our pallet conveying modules are fully designed and manufactured in house, often available from stock, and come with various options. All our conveyor modules are manufactured from mild steel, with a high-quality powder coated finish in a colour of your choice. Private label branding options also available upon request subject to quantity. Our pallet conveyors come with removable side panels, to enable cable runs and components to be housed safely within the conveyor structure.

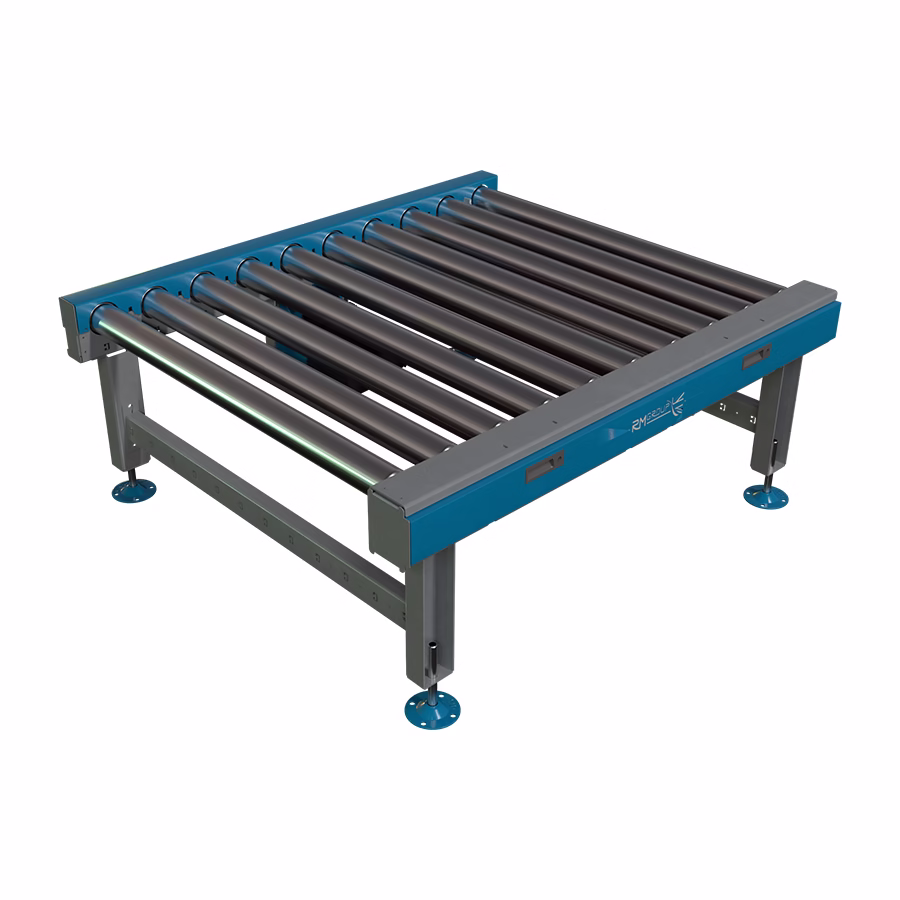

Powered Pallet Conveying:

Fitted with SEW motors as standard, with option for decentralised control or standard conventional motor and gearbox. 80mm zinc plates rollers at close pitch ensure seamless pallet movement. Our conveyors come as standard with a photo-electric sensor each end, mounted discreetly under rollers to ensure they are protected from accidental damage.

We also offer a range of gravity roller (free running) conveyor modules, fitted with 80mm zinc plated close pitch rollers as standard, with an integral run off ramp to ensure full pallets come to a controlled stop.

All our conveyor modules are manufactured from mild steel, with a high-quality powder coated finish in a colour of your choice. Private label branding options also available upon request subject to quantity. Our pallet conveyors come with removable side panels, to enable cable runs and components to be housed safely within the conveyor structure.

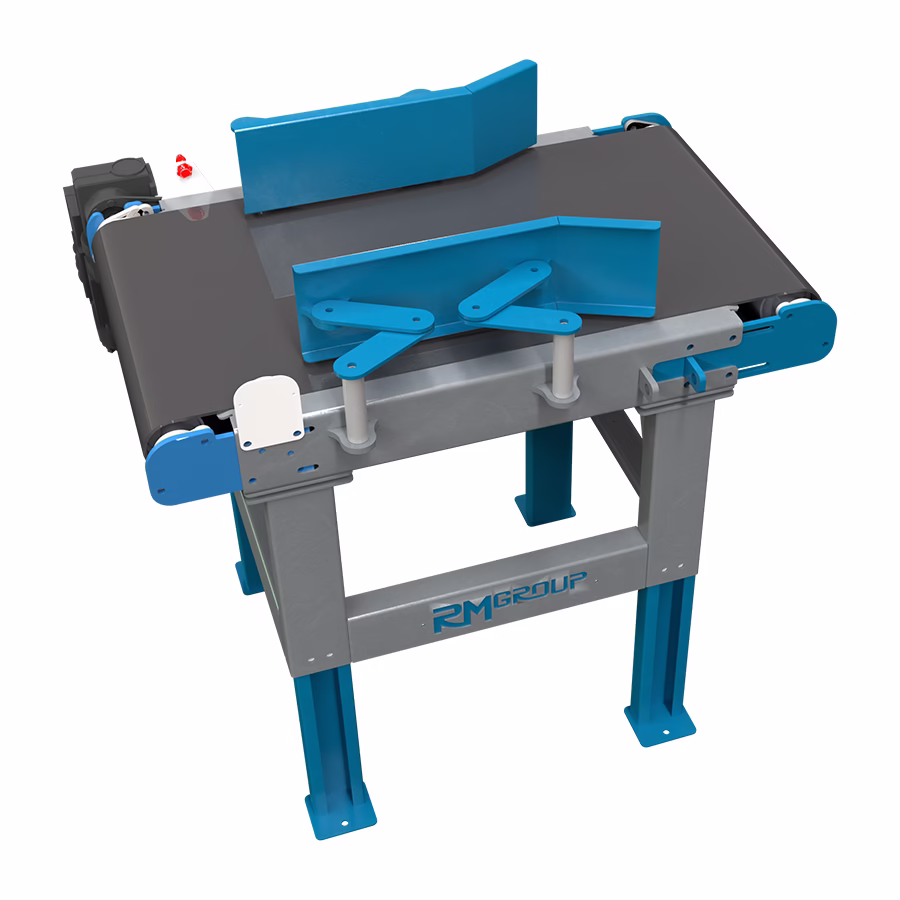

Our transfer conveyors are available in various formats, fitted with a heavy-duty PVC belt as standard, with tensioning available via the integral adjustable head drums, fitted with flange bearings as standard. Our transfer conveyors are made from a mild steel folded construction, finished with a durable powder coat. Private label branding options also available upon request subject to quantity.

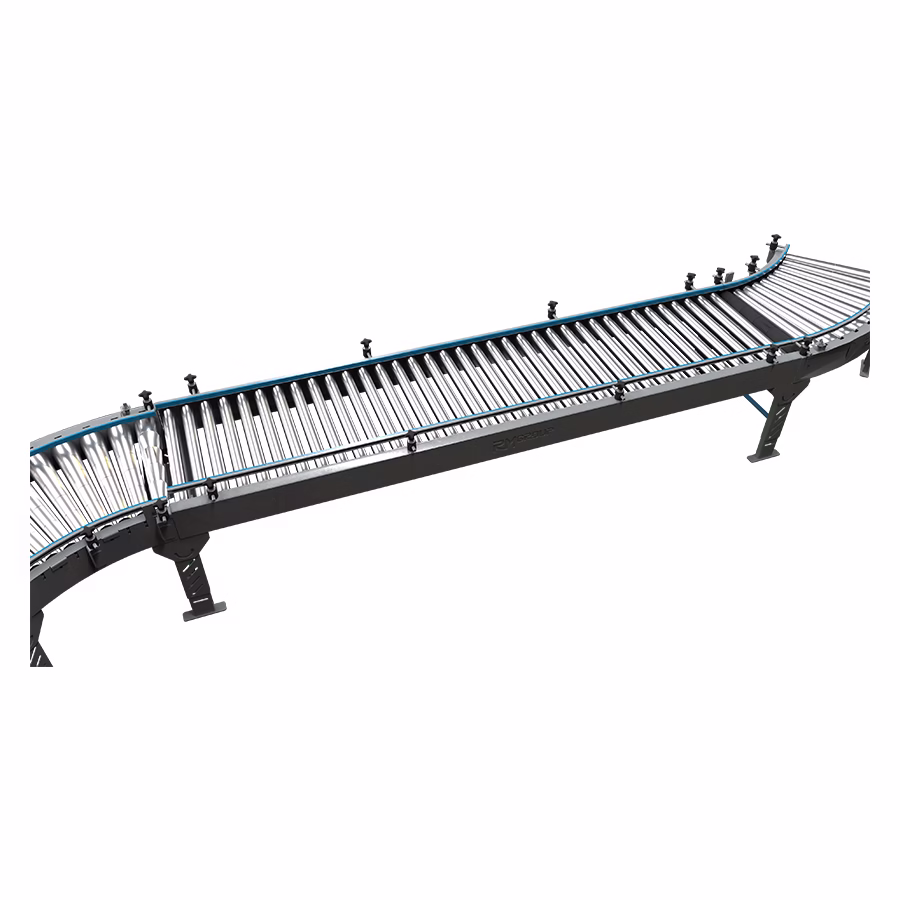

Our 24V roller conveying modules are a quiet system that provides controlled accumulation ideal for conveying cartons, totes and boxes.

Our units come complete with multiple zones, controlled via a controller offering zero-line pressure accumulation, ideal for handling delicate or varying shapes, sizes, and weights of products that need to be queued without contact.

Various section sizes, zone formats, widths and heights can be offered.

Our 24V conveyors are made from a mild steel folded construction, finished with a durable powder coat. Private label branding options also available upon request subject to quantity.

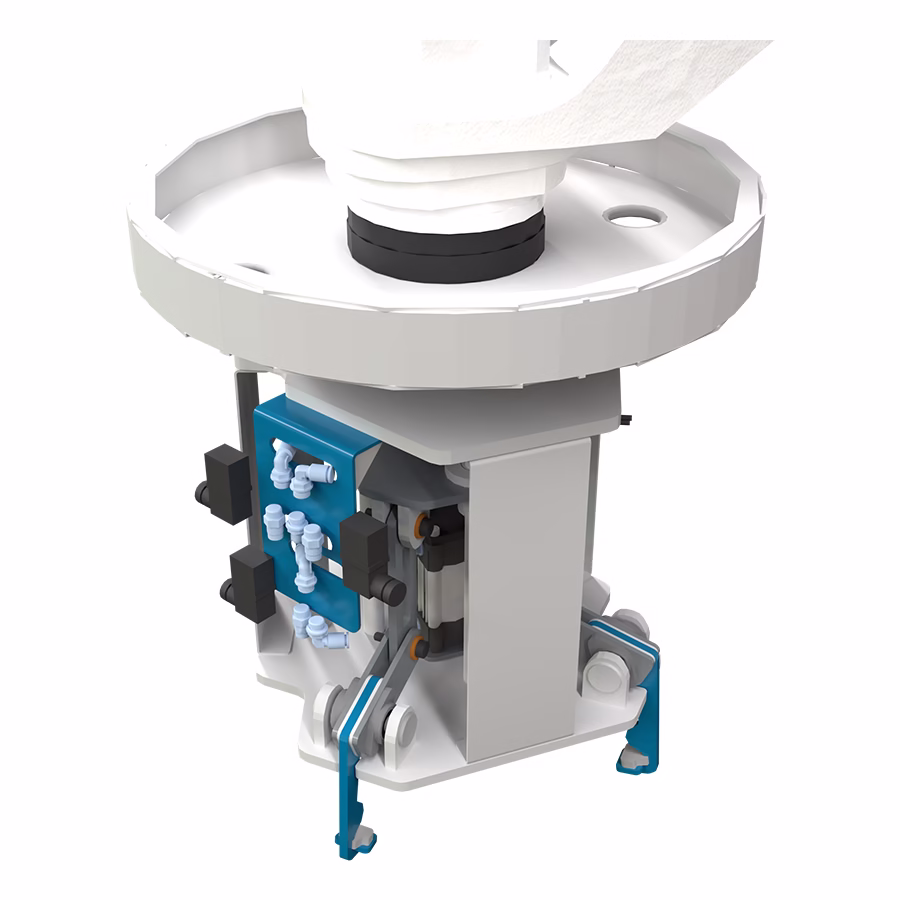

We design and produce standard and bespoke end of arm tooling for robots to suit a variety of applications, utilising a variety of technology from mechanical & pneumatic grippers, to vacuum grippers, servo grippers and everything in between.

Private label branding options also available upon request subject to quantity.

• Bag & Sack Handling
• Case & Box Handling – Mechanical and Vacuum Style
• Tub Handing
• Tote Box Handling
• Sheet & Board Handling
• Cans/Bottle Handling
• Product Handling Tools

Get in touch with our team to discuss your tooling requirement.

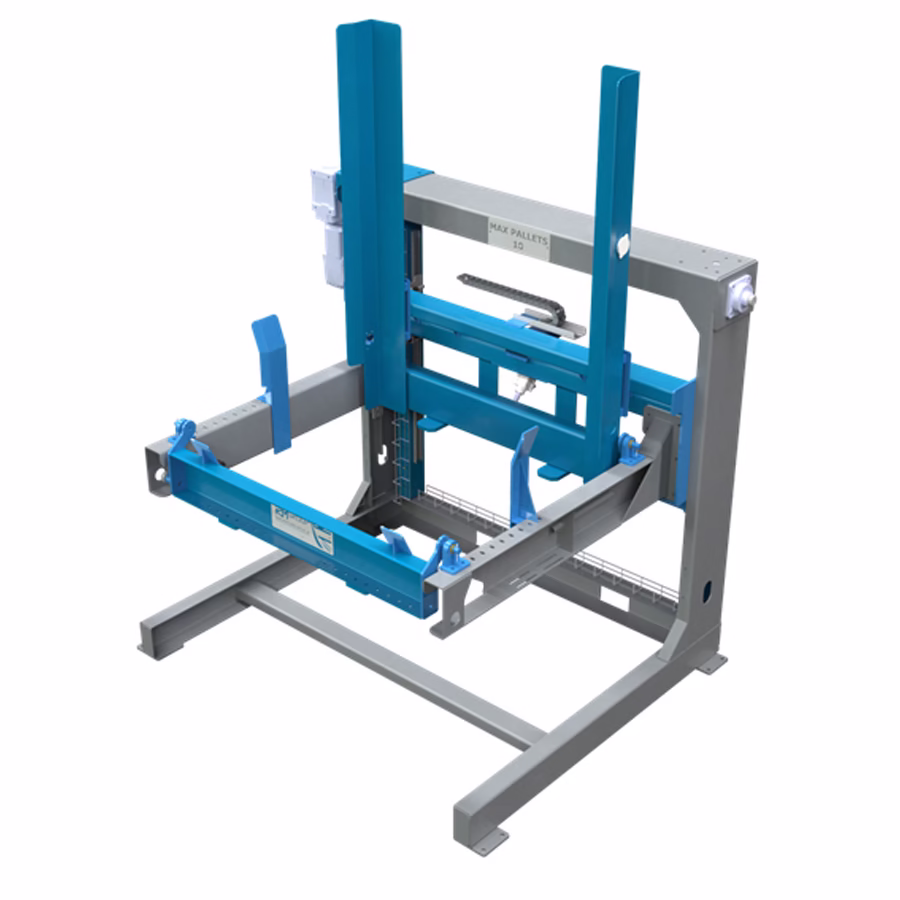

A 10-pallet capacity auto pallet feed machine, fitted with sensory equipment to notify operators when re-fill required, with adjustable arms to manage various pallet sizes from CHEP to Euro. Manufactured from a mild steel powder coated frame, fitted with SEW motors as standard, our pallet magazine is an integral part of any automated pallet handling system.

Private label branding options also available upon request subject to quantity.

We also offer some speciality modules to compliment our range, often available from stock, designed and built with the durability and reliability found with RM Group equipment. Private label branding options also available upon request subject to quantity.

Pick-Up Conveyor:

Designed to work in conjunction with our standard bag handing end of arm tooling due to its roller pitch and castellated design. This enables the fingers of the gripper to grip the bag without fouling the conveyor. Fitted with SEW motors as standard. Mild steel, powder coated finish in Grey/Blue as standard.

Check Weight Conveyor:

A standard 900mm long belt transfer conveyor fitted with integral load cells for check weighing product upto 100kgs. This can then be fed back to a HMI system for QC. Fitted with SEW motors as standard. Mild steel, powder coated finish in Grey/Blue as standard.

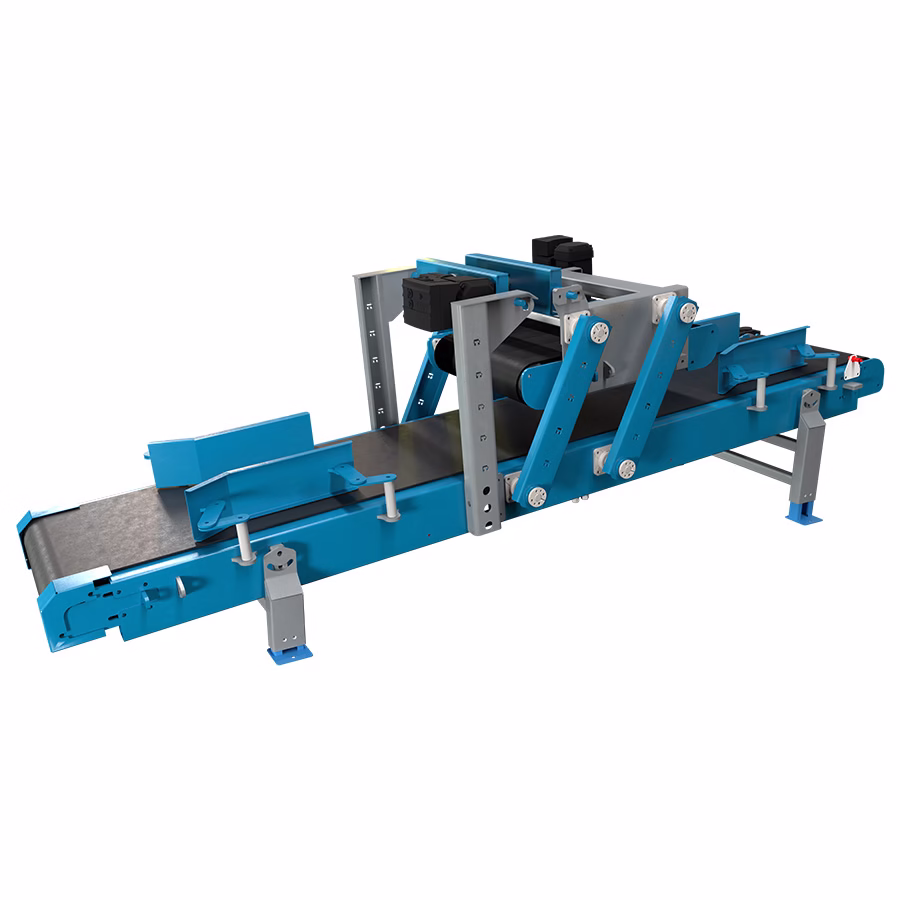

Bag Flattener:

Twin belt conveyor, to flatten the bag prior the reaching the robot tool, fitted with SEW motor. Top belt is adjustable to allow operator to adjust setup for different product types. Mild steel, powder coated finish in Grey/Blue as standard.

Square Roller Conveyor:

A driven roller conveyor, with square rollers to distribute granular product evenly within a sac or bag. Available in 900mm or 1200mm lengths as standard. Fitted with SEW motors as standard. Mild steel, powder coated finish in Grey/Blue as standard.
